Beam Calculator Math
beam(perpendicular) = 2 × throw × tan(½Ø)
beam(parallel) = h × (tan(N + ½Ø) - tan(N - ½Ø))
angle of incidence = atan(h ÷ d)
throw = sqrt(d^2 + h^2)

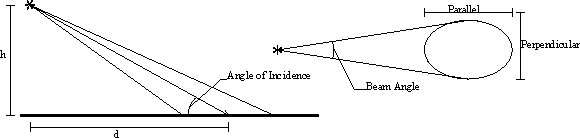

- Ø : beam angle
- N : 90° - angle of incidence
- h : vertical height of instrument
- d : horizontal distance of instrument
